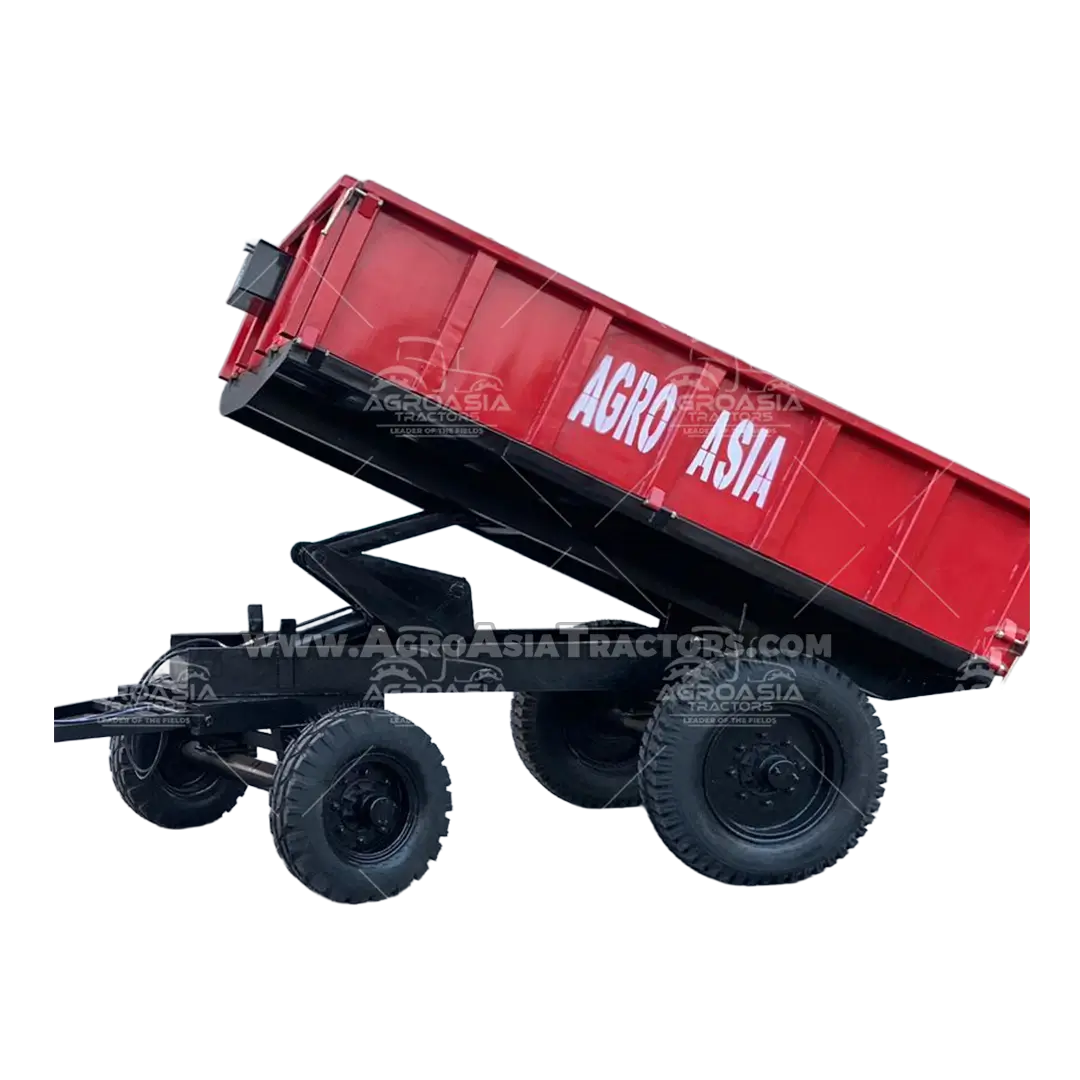

The Farm Tipping Trolley (Double Axle) by AgroAsia Tractors UAE is a strong and reliable trailer made for farmers and contractors who need to carry heavy loads with ease. It is perfect for transporting crops, soil, gravel, or construction material in large quantities. The hydraulic tipping system allows quick and smooth unloading, saving time, fuel, and labor. With its double axle design and 4-wheel support, this trolley offers extra stability and balance, making it suitable for loads from 8–12 tons, and even up to 20 tons on request. Built with heavy-duty steel and a reinforced frame, it is a long-lasting investment for efficient farming and commercial use in the UAE.
| Farm Tipping Trolley – Double Axle (Hydraulic) by AgroAsia Tractors UAE | |
|---|---|
| Tractor Requirement | 75 HP & Above |
| Carrying Capacity | 8 – 12 Tons (optional upgrade up to 20 Tons) |
| Body Size (L × W × H) | Approx. 15’ × 8’ × 2.0–2.5’ |
| Axle / Spindle | Dual tandem axle; 70 mm spindles / 5.0–5.5″ tube, 3/8″ wall |
| No. of Wheels | 4 (tandem) |
| Tyre / Rim Size | 8.25–20 (4 rims) or 400/60-15.5 (market dependent) |
| Hydraulic Lifting | Single or 2× multi-stage hydraulic ram, double-acting system |
| Tipping Angle | 54° – 60° |
| Body Material | Heavy-duty steel, 6 mm floor, side height 500–600 mm |
| Braking System | Mechanical / Hydraulic (Air brakes available on request) |
| Weight (Unloaded) | 1,800 – 3,300 kg (depends on model) |
Note: All specifications can be customized as per customer needs in the UAE. Capacity, hydraulic system, and body size may vary depending on model and usage.
Tipping Trolley Double Axle
