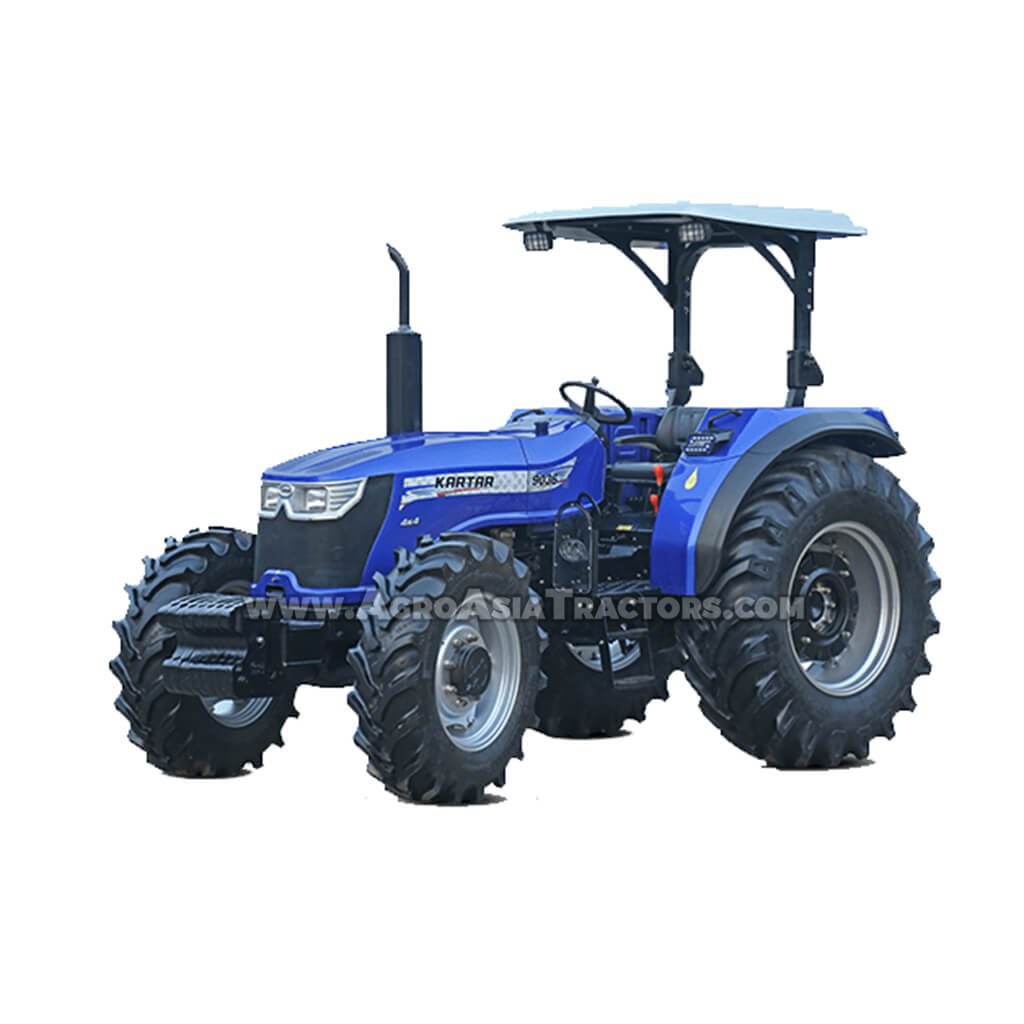

Kartar 9036 – Powerful 90 HP Tractor for Heavy-Duty Farming

The Kartar 9036 is a robust and versatile tractor designed to meet the demanding needs of modern agriculture. With its powerful engine and advanced features, it ensures efficiency and reliability across various farming tasks.

Key Features:

Engine Power: Equipped with a 90 HP engine, the Kartar 9036 delivers exceptional performance for heavy-duty applications.
Transmission: Features a synchromesh gearbox with 12 forward and 12 reverse gears, allowing for smooth and precise gear shifts to match varying field conditions.
Hydraulics: Boasts a lifting capacity of 2500 kg, making it suitable for operating a wide range of implements.
PTO (Power Take-Off): Offers multiple PTO speeds, including 540 RPM, 540E RPM, IPTO, GSPTO, and multispeed PTO, enhancing its versatility for different applications.
Fuel Capacity: Comes with an 80-liter fuel tank, ensuring extended working hours without frequent refueling.

Kartar Globetrac 9036 Tractor Specifications

Tractor Model	Kartar Globetrac 9036
Drive	4WD
ENGINE DETAILS
Model	4R 1040 T
Power (HP)	90
Type	4 Stroke Water Cooled, Turbocharged Diesel Engine
No. of Cylinders	4
Cubic Centimeters (CC)	4160
Rated Engine Speed	2200
Air Cleaner	Dry Air Cleaner With Clogging Sensor
CLUTCH
Type	Dual Clutch
Plate Size (MM)	310 MM
TRANSMISSION
Type	Synchoromesh
Gear	12F + 12R
Speed	Minimum 1.58 KMPH / Maximum 32.06 KMPH or Above
PTO
Type	Independent ground PTO multi-speeds
RPM	540@1938/540E@1648
No. of Splines	6
BRAKES
Brakes	Oil Immersed Disc Brakes
Parking Brake	Independent
STEERING
Steering Type	Hydrostatic Power Steering
HYDRAULICS
A. Position Control	To Hold The Lower Link At Any Desired Height
B. Automatic Depth/Draft Control	Maintains Uniform Draft
C. Mix Control	For Simultaneous Use of Position And Draft Control For Optimum Field Output.
Lifting Capacity (kgs.)	2500
3 Point Linkage	Cat-2
ELECTRICAL
Battery	12V,110AH
Alternator	12V,42A
Starter Motor	12V,2.7KW
TYRES
Front	12.4 X 24
Rear	18.4 X 30
FUEL TANK
Capacity / Type	80 Ltrs.

The Kartar 9036’s combination of power, advanced transmission, and substantial lifting capacity makes it a reliable partner for farmers seeking efficiency and productivity in their agricultural operations.
